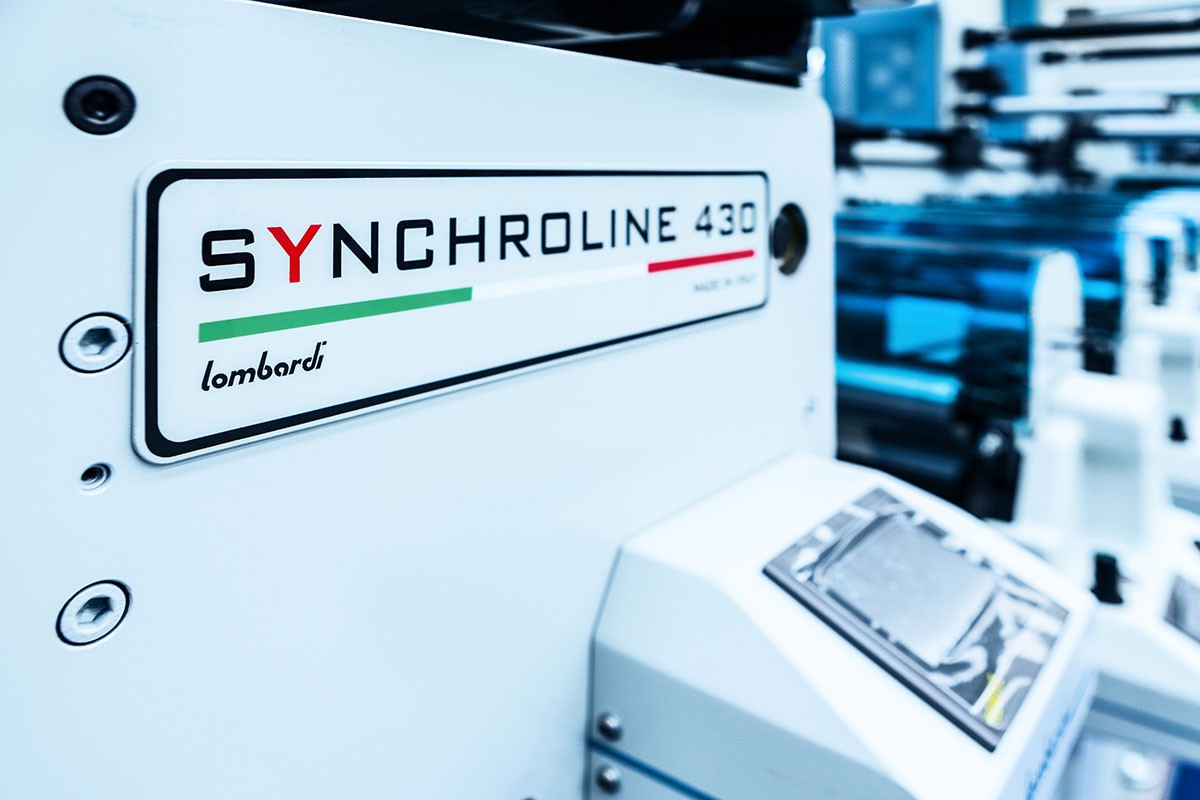

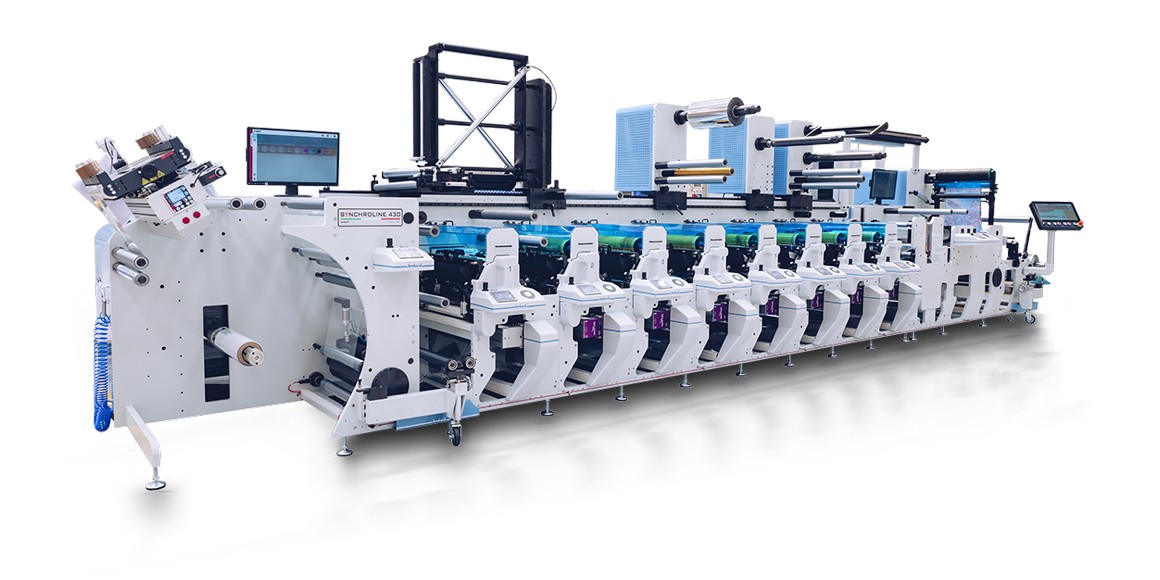

Synchroline
Fully servo motor flexo press
Product overview
One of the major request of the printers today is the possibility of printing on extensible materials needed for packaging industry.
The problems relative to the maintainance of the printing register in these cases are well known by the printers. So here the technology of the electrical shaft becomes crucial.
SYNCHROLINE is equipped with printing groups governed singularly by brushless motors and the setting and mainteinance of the printing register of the whole press is governed by the electric board with a system of register control. This ables to correct on real time the deviation from the register due to the extentions of the material.
For the printing industry that looks for maximum versatility and the possibility of working on a wide gamma of materials.

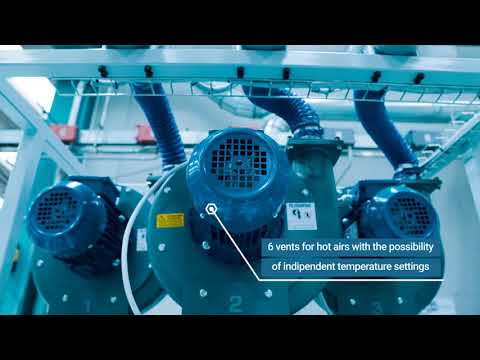

Videos
Main features

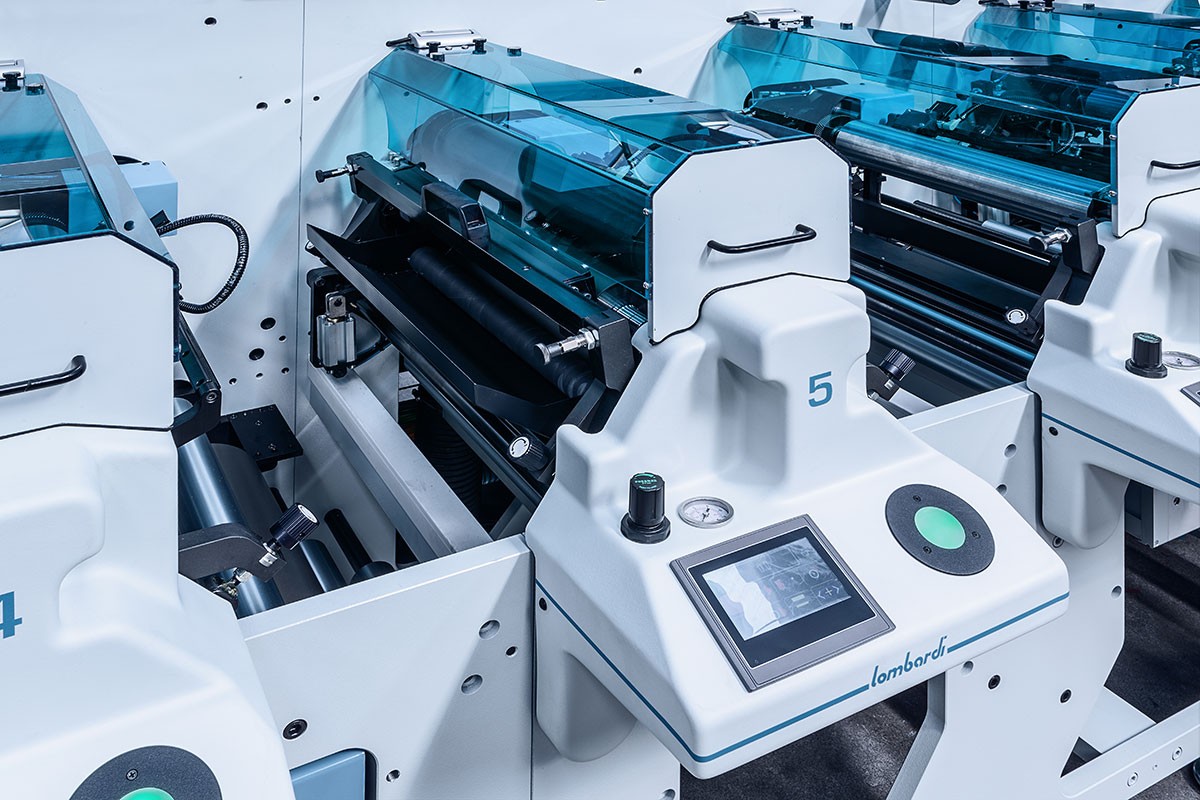

SYNCHROLINE is equipped with A.B.S. printing unit:
- Hi-FiT system: An innovative system is used for print rolls allowing for immediate fitting of cylinders of different diameter with no need for an adapter. In fact print rolls lay on a special algorithmical-studied curve that ables to keep constant the printing pressure varying the roll diameter.
- Hi-FiX system: The plate cylinder is pneumatically clamped with a conical piston that grants irreversibility of motion and reduces motions and vibrations to a minimum.
- Hi-DynamiX system: The blade is pressured against the anilox roller with pneumatical system, determining an auto-adaptive pressure dynamic, resulting in the best ink distribution.
- Hi-InX system: When the machine stops, the ink roller (anilox) is first removed, followed (after a settable time) by the print cylinder, in order to clean ink in excess (an essential operation when using non-UV inks).
FOREFRONT ELECTRONCS:
- Fully automatic electronic pre-registration system: minimum material waste, minimum waste of time, maximum precision.
- Fully automatic register controls with parametrizaion system for perfect registration on extensible materials.
- Electronical tension control for perfect tensioning of different substrates.
- Quality analisys sytem.
Tech Specs
| Technical Data | SYNCHROLINE 330 | SYNCHROLINE 430 | SYNCHROLINE 530 | SYNCHROLINE 600 |
| Paper width [mm] | 350 | 450 | 550 | 620 |
| Print width [mm] | 330 | 430 | 530 | 600 |
| No. print. units[n] | 2-10 | 2-10 | 2-10 | 2-10 |
| Unwinding diameter [mm] | 1000 | 1000 | 1000 | 1000 |
| Max speed [m/min] | 220 | 220 | 220 | 220 |
| Min print length [inches] | 8 | 8 | 8 | 8 |
| Max print length [inches] | 24 | 24 | 24 | 24 |
| Min length rotary die [inches] | 8 | 8 | 8 | 8 |
| Max length rotary die [inches] | 24 | 24 | 24 | 24 |
| No. rotary dies [n] | 2-5 | 2-5 | 2-5 | 2-5 |
| Printable materials | paper, adhesive paper, extensible film | paper, adhesive paper, extensible film | paper, adhesive paper, extensible film | paper, adhesive paper, extensible film |
